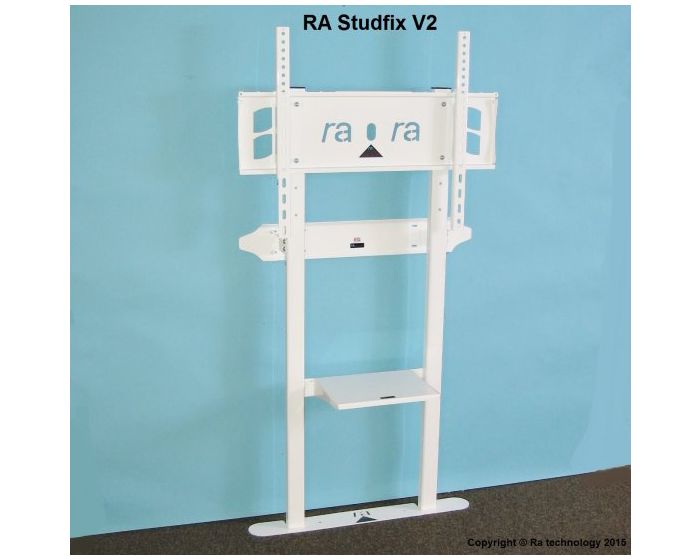

RA-Studfix-V2-LL Wall to Floor Mount (Up to 80kg)
This Mounting System is suitable for Flat Screens with a maximum recommended weight of 80kg and maximum VESA mount configuration of 800x600. An Optional Extra Screen Height and Weight Extension Kit is available for this system to enable a heavier (120kg) screen to be fitted at increased height. See RA-Studfix-V2-EXT.
A complete installation solution designed to enable Flat Screens or Touch Screens to be fixed to a wooden stud partition wall or solid wall and direct the weight of the screen directly to the floor. Ideal for installations when the wall itself cannot support the weight of a heavy screen.
The system includes two upright supporting box section legs which are fixed to the existing upright wooden studs inside the wall with a Wall Mounting Plate and Floor Plate included in the kit. This creates a rigid, safe and strong fixed mounting frame for the Flat Screen Mount (included) to fix onto and position the screen at a selection of height settings. All fixings, bolts, coach screws and plastic caps are included for a very neat and tidy installation.
The two Upright Supporting Legs are hollow box section design and allow all connection cables to and from the screen to be routed through them. Cable exit / entry slots are positioned on the inner sides of each leg to enable surface mounted cable trunking to route cables away to a connection panel if required (not included).
Maximum CENTRE POINT of screen from floor level is approximately 1500mm.
Minimum CENTRE POINT of screen from floor level is approximately 1025mm.
Suitable for any size screen with a maximum VESA mount configuration of 800 x 600 and up to a recommended maximum weight of 80kg or upto 120kg when used with our RA-Studfix-V2-EXT kit. The Wall Mounting Plate can be fixed to the wall in a LOWER or HIGHER position to avoid any dado rails or network trunking on the walls surface. In the LOWEST position the centre of the wall plate will be 910mm from floor level and in the HIGHEST position the wall plate will be 1250mm from floor level. The Wall Mounting Plate itself is 130mm high and has a series of mounting slots which are 400mm and 600mm apart. Upright supporting legs are 500mm apart (centre to centre). The maximum void between the wall surface and the rear of the upright legs is 65mm.
Full installation instructions included with each kit and are above in PDF format for your reference.
Finished in durable White or Black powder coat finish.
An Optional Extra Media Shelf is available for this system (RA-Studfix-V2-Shelf) which can be positioned under the screen at a selection of height settings.
| Item | RA-Studfix-V2-LL |
|---|---|
| Brand | RA |
| Mount Type | Wall/Floor |
| VESA Min | N/A |
| VESA Max | 800x600 |
| Height Adjustable | No |
| Max Weight | 80kg |
| Short Description | 3 Year Warranty |
