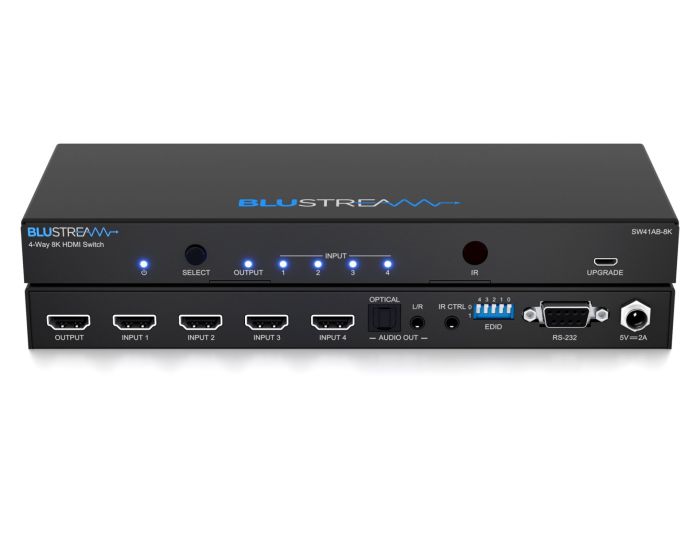

The SW41AB-8K HDMI2.1 switcher integrates multiple source devices where the features and functionality of the HDMI2.1 chipset are being utilised for 8K 60Hz, and 4K 120Hz signals.

With selection of 4 x HDMI input sources, the SW41AB-8K can auto-switch based on detecting a 5V hot plug, or a new TMDS signal, RS-232, or manually using IR, or the front panel.

Analogue and optical digital (S/PDIF) audio breakout allows for audio integration. The SW41AB-8K is HDCP2.3 compliant and has advanced EDID management of source devices connected.

• Features 4x HDMI 2.1 inputs that can be switched to a single HDMI output
• Supports HDMI 2.1 40Gbps specification including HDR
• Supports up to 8K60 YCbCr 4:2:0 10bit, 8K30 RGB/YCbCr 4:4:4 10bit or 4K120 RGB/YCbCr 4:4:4 10bit
• Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Auto HDMI source switching via 5V and / or TMDS signal sensing
• Manual HDMI source switching via front panel, IR and RS-232
• Audio breakout to analogue L/R audio and optical (S/PDIF) digital outputs concurrently
• 5V / 12V IR Compatible
• HDCP 2.3 compliant with advanced EDID management
• Video Input Connectors: 4 x HDMI Type A, 19-pin, female
• Video Output Connectors: 1 x HDMI Type A, 19-pin, female
• Audio Output Connectors: 1 x Optical (S/PDIF) & 1 x Analogue audio L/R (3.5mm stereo jack)
• IR Input Ports: 1 x 3.5mm stereo jack
• RS-232 Serial Port: 1 x DB9, female
• Dimensions (WxDxH): 196 x 104 x 41mm, including connections, without feet (removable)
• Shipping Weight: 0.9kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 1 x 5V/2A DC
