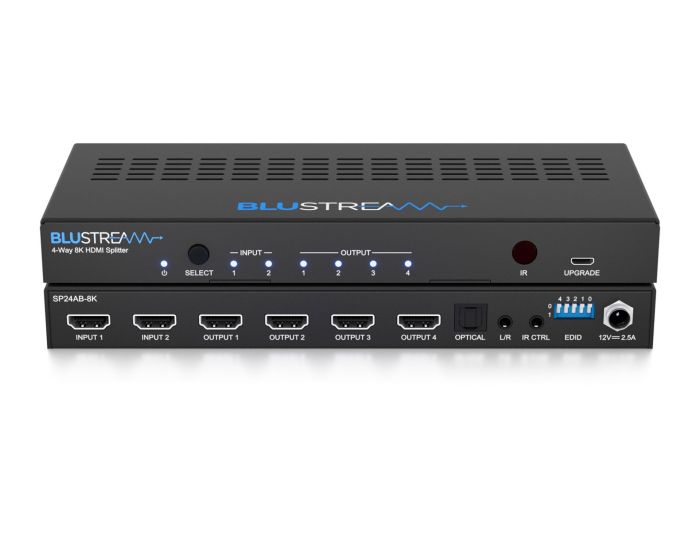

Blustream SP24AB-8K 4-Way HDMI 2.1 Splitter
The SP24AB-8K HDMI 2.1 splitter is designed to be used where HDMI 2.1 chipset are being utilised for signals up to 8K 60Hz and 4K 120Hz.
With selection of 2 x HDMI 2.1 input sources, a single source can be distributed to up to 4 x outputs simultaneously, the SP24AB-8K can auto-switch based on detecting a 5v hot plug, a new TMDS signal; or manually using IR (remote included), or the front panel. Analogue and optical digital (S/PDIF) audio breakout allows for audio integration. HDCP2.3 compliant, and advanced EDID management.
- Features 2 x selectable HDMI 2.1 inputs that are split to 4 x HDMI outputs
- Supports HDMI 2.1 specification including HDR (40Gbps maximum)
- Supports up to 8K 60Hz YCbCr 4:2:0 10bit, 8K 30Hz RGB/YCbCr 4:4:4 10bit, or 4K 120Hz RGB/YCbCr 4:4:4 10bit
- Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
- Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
- Auto HDMI source switching via 5v and / or TMDS signal sensing
- Manual HDMI source switching via front panel and IR
- Audio breakout to analogue L/R audio and Coaxial (S/PDIF) digital outputs concurrently
- 5v / 12v IR Compatible
- HDCP 2.3 compliant with advanced EDID management
- Video Input Connectors: 2 x HDMI Type A, female
- Video Output Connectors: 4 x HDMI Type A, Female RJ45 connector
- Audio Output Connectors: 1 x Analogue left / right audio (3.5mm stereo jack), 1 x Optical S/PDIF socket
- IR Input Port: 1 x 3.5mm stereo jack
- Upgrade Port: 1 x Micro USB connector
- Casing Dimensions (W x D x H): 212mm x 94mm x 23mm
- Power Supply: 12v/2.5A DC connector
- Box Dimensions (W x D x H): 265mm x 135mm x 90mm
- Shipping Weight: 1kg
- Operating Temperature: 32°F to 104°F (0°C to +40°C)
- Storage Temperature: -4°F to 140°F (-20°C to +60°C)
| Item | SP24AB-8K |
|---|---|
| Weight (kg) | 1.000000 |
| EAN | 9340242004710 |
