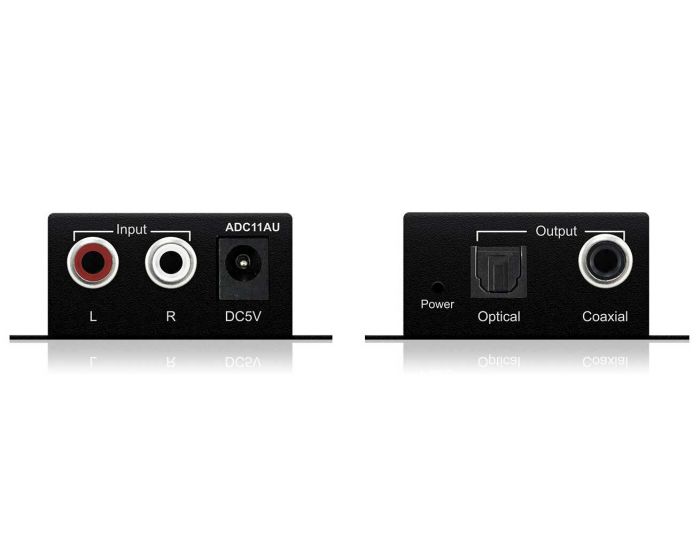

Blustream ADC11AU Audio Converter
Our ADC11AU is designed to convert left / right analogue stereo audio into either coaxial or optical digital. Both digital outputs are simultaneous so audio can be distributed to multiple locations. The ADC11AU converts to 16-bit 48kHz digtial audio for enhanced sound reproduction.
Box Contents
1 x ADC11AU
1 x 5V/1A DC Power Supply
1 x Mounting Kit
1 x User Manual
Key Features
-
ADC (Analogue to Digital Audio Converter) converts analogue left / right stereo audio input to both SPDIF optical and coaxial digital PCM outputs
-
Both optical digital and coaxial digital output simultaneously
-
Converts to 16-bit 48kHz digital audio
-
Plug and play solution
Specifications
-
Audio Input Connectors: 2 x Analogue stereo left / right (RCA)
-
Audio Output Connectors: 1 x Optical (SPDIF) & 1 x RCA (SPDIF)
-
Product Dimensions (W x D x H): 65 x 55 x 25mm (with connections)
-
Product Dimensions (W x D x H): 55 x 55 x 25mm (without connections)
-
Product Weight: 0.1kg (excluding accessories)
-
Carton/Box Dimensions (W x D x H): 165 x 110 x 90mm
-
Shipping Weight: 0.3kg
-
Operating Temperature: 32°F to 104°F (0°C to 40°C)
-
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
-
Power Supply: 5V/1A DC, barrel type connector
-
Mounting kit included
| Item | ADC11AU |
|---|---|
| Weight (kg) | 0.100000 |
| Short Description | Blustream ADC11AU Audio Converter |
